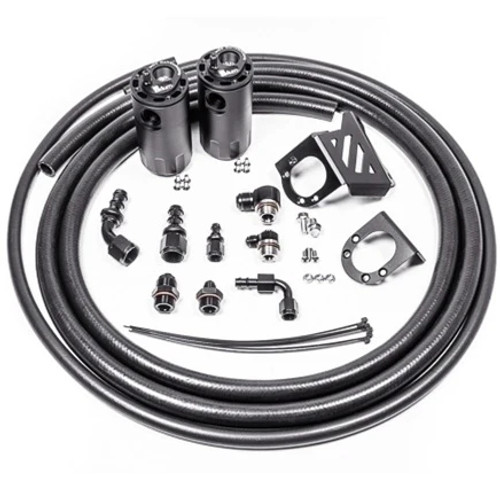

TheYotaGarage is proud to offer the Radium Engineering CCV Catch Can Kit for your 2005-2023 Toyota Tacoma. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. These kits mount using factory holes and integrate perfectly with the surrounding components. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modifications are required. To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the intake pipe. At low loads, it experiences atmospheric pressure. However, when the engine is at high load (WOT), the line will experience high flow from the crankcase into the intake system. This would normally lead to oil and sludge accumulation in the air filter intake pipe. The CCV catch can captures this and promotes clean filtered air back into the intake.
FEATURES
- Large 10AN ORB Ports
- 4AN ORB Drain Port
- 2-Step Oil Separation Baffling
- O-Ring Sealed Dipstick
- Uses Factory Holes and Integrates Perfectly With The Surrounding Components
- Does Not Vent To Atmosphere
- Emissions and Track Legal
- Closed Loop Systems Remove The Oil and Sludge From The PCV Gasses Before It Is Routed To The Engine To Be Burned
- Releases Crank Case Pressure For Optimal Performance
- Closed Systems Prevents Unwanted Oil Vapors From Entering The Cabin
- No Cutting, Drilling Or Permanent Modifications Are Required
- The CCV Catch Can Promotes Clean Filtered Air Back Into The Intake Manifold
TECH NOTES:
- NOT COMPATIBLE WITH LHD M/T TRUCKS THAT HAVE THE REMOTE CLUTCH M/C RESERVOIR
- The CCV catch can kit does NOT address blow-by from the PCV side of the crankcase.
- The CCV catch can kit is compatible and recommended to be used with the PCV catch can kit. See 20-0838 above.
