Currently unavailable online. We are updating this kit to Morimoto's current 4Banger pod revision, so it is not available for direct online purchase right now. Please contact our team and we will build it to order.

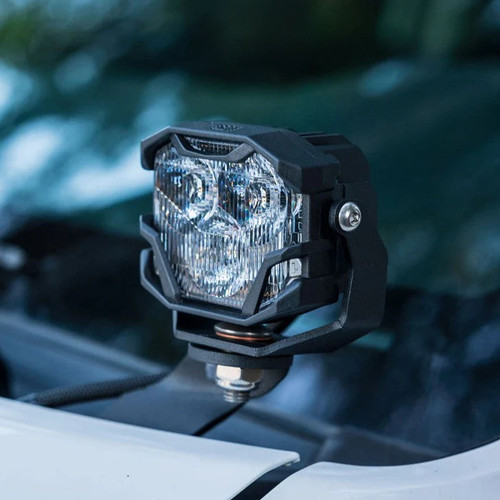

The Lexus GX470 Morimoto 4Banger A-Pillar Ditch Light LED system is the perfect solution for more light, aimed exactly where you want it. From long-range spot-lights for high speed driving to ditch lights to illuminate the side of the road, our A-Pillar kit is all about versatility. Select a set of high performance 4Banger LED pods in your choice of beam pattern, pair that with the brackets to make installation a breeze, and power it properly with our switched wire harness.
- Color: Yellow
- Multiple Beam Options
- Limited Lifetime Manufacturer Warranty
- Fits: 2003-2009 Lexus GX470
Morimoto Beam Pattern Differences (Combo, Spot, SAE Wide)
TECH SPECS
INTENSITY:
NCS WIDE YELLOW:
8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS WIDE WHITE:
14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS COMBO YELLOW:
38,850 Cd (Post Warm-Up) (384lux @ 10m)
NCS COMBO WHITE:
55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS SPOT YELLOW:
73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS SPOT WHITE:
105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB WIDE YELLOW:
14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB WIDE WHITE:
22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB COMBO YELLOW:
54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB COMBO WHITE:
78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB SPOT YELLOW:
119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB SPOT WHITE:
170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
INPUT VOLTAGE:
9-18V DC
POWER:
20w (NCS) 42w (HXB)
CURRENT:
1.5A (NCS) or 3.2A (HXB)
DIMENSIONS:
82mm W, 67mm H, 60mm D
LIGHT SOURCE:
3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
INPUT:
Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
MATERIAL:
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
