The ICON exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 3.0 Series rear shocks with CDCV, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience.
3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

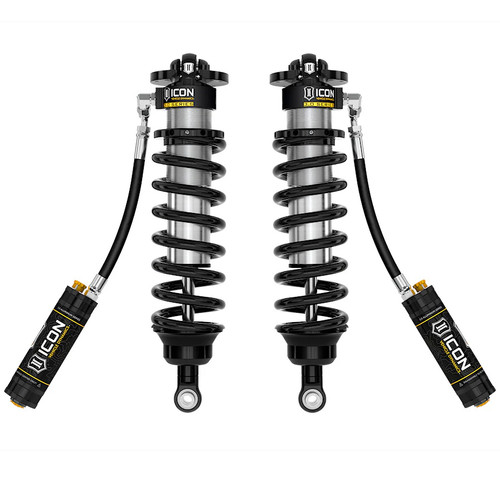

These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue
- Rig Position: Front
- Adjustable 1.25-3.5" of Front Lift
- 40% more travel
- Vehicle specific design
- Vehicle specific tuned for superior shock damping and control
- 3.0 Body diameter for increased oil and larger piston
- 10” CNC machined 6061 aluminum components with a black anodize finish
- PTFE lined bearings for extended longevity and minimal deflection
- 100% Rebuildable and Revealable.
- 7/8” diameter induction hardened, chrome plated shock shaft.
- ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- Fits: 2022+ Toyota Sequoia
Technical Specs
? OEM Wheel & Tire Fitment: Yes
? Recommended Aftermarket Wheels: ICON Alloys | 17x8.5” w/ 5.75” B.S. / 25mm Offset ? Recommended Aftermarket Wheels: ICON Alloys | 18x9” w/ 6.00” B.S. / 25mm Offset ? Recommended Aftermarket Wheels: ICON Alloys | 20x9” w/ 6.00” B.S. / 25mm Offset ? Recommended Aftermarket Tires: 35” x 12.50” (Larger tires may fit but fender trimming and modifications will be required.)
? TECH NOTE: Not compatible with Sequoia TRD PRO trim
? TECH NOTE: Not compatible with Sequoia models with AVS
? TECH NOTE: When going over 2 1/4” of lift sway bar drop Part # 55154
? TECH NOTE: When going over 2 1/4” of lift UCA REQUAIRED
? TECH NOTE: Not compatible with hybrid models
? TECH NOTE: 23-UP SEQUOIA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE WILL BE 2.5-4” 57845CP 23-UP SEQUOIA 3.0 REAR SHOCK
