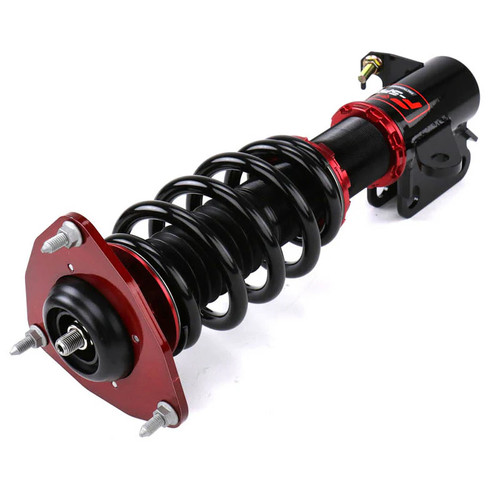

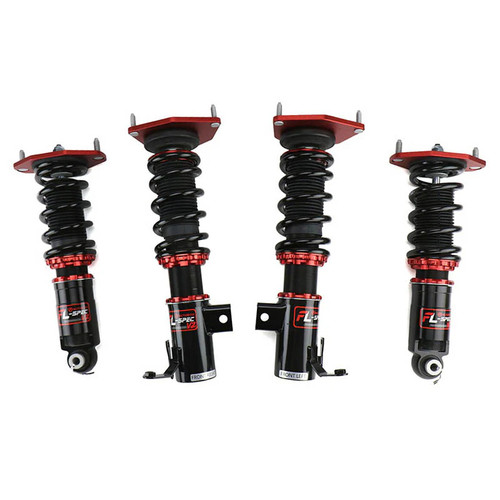

FactionFab F-Spec Coilovers | 2022+ Toyota GR86

The 2022+ Toyota GR86 FactionFab F-Spec Coilovers will provide your Toyota GR86 with a comfortable ride while still giving you height adjustment and improving the handling and steering. Faction Fab is a industry leader when it comes to GR86 Coilovers and Suspension Components. The F-Spec Coilovers have been designed using softer spring rates so that you can have an efficient suspension package without compromising the overall ride quality.

• Height Adjustable
• Front Height Lowering: 0.1-2.4"
• Rear Height Lowering: 0.1-1.9"
• Bolt-On Installation
• 32 Click Dampening Adjustable
• Monotube Design
• Spring Rate Front: 392lbs/in
• Spring Rate Front Metric: 7Kg/mm
• Spring Rate Rear: 392lbs/in
• Spring Rate Rear Metric: 7Kg/mm
• Comfort focused spring rates and valving for street performance while not jeopardizing ride quality
• Mild drop range that allows for maximum shock travel*
• 32-click adjustable monotube shocks allow for stock-like ride quality on the soft setting while providing enough adjustment to stiffen up the ride for the weekend track days or canyon drives
• The adjustment allows customers to fine-tune ride quality from soft too stiff in order to meet their road surface and driving environmental needs
• Rubber isolated top-hats feature a high durometer rubber mount to reduce deflection while isolating unwanted minor vibrations and road imperfections
• Includes height adjustment tools
• Includes damping adjustment tools

GENERAL:

• Japanese steel tube construction using SAE1010 STKM13c
• Monotube shock design with high-performance mono-tube shock construction allowing for better rider control, fluid life, and thermal fluid stability
• Synthetic high-performance oil
• Independent ride-height adjustability separately from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
• Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
• Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
• Robotic welded and electroplated lower shock mounts for consistent fit and finish
• Dust boots and bump stops for shock protection and longevity
• Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise

Installation

How to Install FactionFab Coilovers on GR86 >>DOWNLOAD<<<
